Forecasting Mobile Network Traffic Data using Coactive Adaptive Neuro-Fuzzy Inference System Model

Francis Kwabena Oduro-Gyimahα & Kwame Osei Boatengσ

____________________________________________

ABSTRACT

The analysis of 2G and 3G voice traffic by researchers have established that their characteristics follow the Poisson distribution and that earlier theories on call arrivals hold. However, few research work have been conducted in the literature, with respect to predicting 2G and 3G voice traffic using artificial intelligent networks. This study explores the forecasting capabilities of CANFIS model in predicting voice traffic of two different mobile network generations: 2G as first input data while 3G serve as second input data. This study uses 3G weekly voice traffic and 2G weekly voice traffic time series data measured from a live mobile network with nationwide coverage between 2015 and 2017 in Ghana. The results indicate that CANFIS model with Bell membership function, 7 membership function per input, TanhAxon transfer function and Levenberg-Marquardt learning rule can give accurate traffic prediction for 3G voice traffic. With 2G voice traffic, CANFIS model with Gaussian membership function, 5 membership function per input, Axon transfer function and momentum learning rule was the best model. The results indicate that CANFIS model can be used to predict both 2G and 3G weekly voice traffic with appreciable improvement.

Keywords: coactive adaptive neuro-fuzzy inference system, 2G network traffic, 3G network traffic, mobile network traffic, forecasting, voice traffic.

Author α: Department of Computer Engineering, Kwame Nkrumah University of Science and Technology, Kumasi, Ghana.
σ: Department of Telecommunications Engineering, Ghana Technology University College, Kumasi, Ghana.

  1. INTRODUCTION

Traffic forecasting in telecommunication is considered by many researchers as bedrock of effective planning of network and resource management [1] [2]. It is appropriate to choose forecasting method by laying more emphasis on the characteristics of the time series data [3]. Considering voice traffic generated from conventional circuit-switched networks, linear models have been found to produce good forecasting [1]. Other studies have pointed out that traffic is characterised by short-range dependence and the call arrivals follow a Poisson distribution [4] [5] [6]. Reference [7] examined empirical data of 3G voice traffic and concluded that statistical models are unable to correctly account for the contribution of noise, signalling traffic etc. on bandwidth use. Reference [8] confirmed that terminating calls of 2G voice traffic conforms to the Poisson distribution and that earlier theories on call arrivals hold.

Linear models have extensively been used in the prediction of mobile voice traffic. Reference [9] applied ARIMA and Holt-Winters models to predict mobile network traffic. Other studies that have proposed linear models for prediction of telecommunications data are found in [10] [11] [12]. Reference [13] used ARIMA model to forecast M-3 telecommunication data and concluded that it performs well with minimum values of MAD, RMSE, MAPE, SSR and MAE as compared to earlier findings. The authors in [14] also examined the biweekly network traffic from CERNET and predicted the traffic using SARIMA model. The model gave a good prediction when 10 steps ahead of time prediction was considered.

Even though linear models have generated accurate prediction for telecommunication network traffic it suffers from poor performance in estimating intensely nonlinear features prominent in such traffic [15]. In addition statistical models require inputs from expert in the specification of models which is one of the challenges.

In order to solve these challenges, neural network methodologies are often employed by researchers in this field. Lately ANN has been used extensively in the field of telecommunications, telephone traffic prediction [16], internet traffic [17], and network traffic prediction [18], however there are several problems associated with designing and training of ANN [19]. In reference [20] GSM network traffic congestion was investigated with neural network model.

On the contrary, authors in [21] identified some of the challenges of ANN as network model selection and data preprocessing. In addition, ANN training algorithm is also found to be susceptible to categorising redundant data [21].

On the other hand, CANFIS can solve poorly defined problems efficiently than neural networks when the underlying function to model is highly variable or locally extreme [22] [23]. Fuzzy inference systems are also valuable, as they combine the explanatory nature of rules (MFs) with the power of neural networks. CANFIS model is described as that which integrates adaptable fuzzy inputs with a modular neural network to rapidly and accurately approximate complex functions [22] [23] [24] [25] [26].

However, few research work have been conducted in the literature, with respect to predicting 2G and 3G voice traffic using artificial intelligent networks. Authors in [27] applied ANFIS model to predict voice traffic quality in 2G and 3G networks using empirical data measured from three operators in Athens. Reference [28] explored the performance of Holt Winters, MLP, Support Vector Machine (SVM) and Random Forest in predicting 2112 hourly voice traffic of 3G network and confirmed that SVM is better than the other models. In another study, reference [29] considered the forecasting capabilities of feedforward neural network in determining the busy hour of voice traffic of GSM network. Reference [6] examined the characteristics of 2G and 3G voice traffic in downlink and uplink path and concluded that both scenarios follows the Poisson distribution. In [30], the authors analysed the heating value of a sample fuel or gross caloric value (GCV) using CANFIS model. The result was compared with ANN model which proved that the CANFIS model performs better.

On the contrary, simultaneous prediction of voice traffic of 2G and 3G networks have not been modelled or explored with CANFIS network. In the literature research work using CANFIS for prediction where two inputs data are employed have been found in different fields. For instance, reference [24] implemented two-input two-output CANFIS architecture with two rules per output for grade estimation. Reference [36] designed a modified algorithm of CANFIS with 2-input and 2-output architecture and validated the new model with simulated data recording minimum RMSE value. Other studies that have confirmed the prediction abilities of CANFIS model are found in [23][24][25].

This study explores the capabilities of CANFIS in predicting voice traffic of two different mobile network generations: 2G as first input data while 3G serve as second input data simultaneously. To the best of our knowledge, no study has been identified in the literature that examines the prediction efficacy of CANFIS model for 2G and 3G weekly voice traffic.

  1. METHODOLOGY

3.1 Coactive Adaptive Neuro-Fuzzy Inference System Modelling of 2G and 3G Voice Traffic

Coactive Adaptive Neuro-Fuzzy Inference System (CANFIS) has extended the basic ideas of its predecessor ANFIS to any number of input-output pairs [31]. CANFIS is a generalised form of ANFIS [32] which is found to integrate a fuzzy input with a modular neural network to quickly solve poorly defined complex functions [25]. CANFIS has a fundamental component of fuzzy axon which applies a membership function to the input [25]. According to reference [3], CANFIS is a dynamic statistical model that incorporates classification and regression trees with a neuro-fuzzy inference system that is locally tuned like the Radial Basis Function network (RBFN).

The output of a fuzzy axon is computed [23] using the following formula in equation (1):

where





MF= membership function of the particular subclass of the fuzzy axon.

3.2  Creation of CANFIS Architecture

The CANFIS architecture for two-input and two-output is illustrated in Figure 1. For a model initialisation, a common rule set with n input and m IF-THEN rules is given in [23] as follows:







.

.

.





The layers in CANFIS structure can be adaptive or fixed and their functions are [33]: Layer 1, Layer 2, Layer 3, layer 4 and Layer 5.

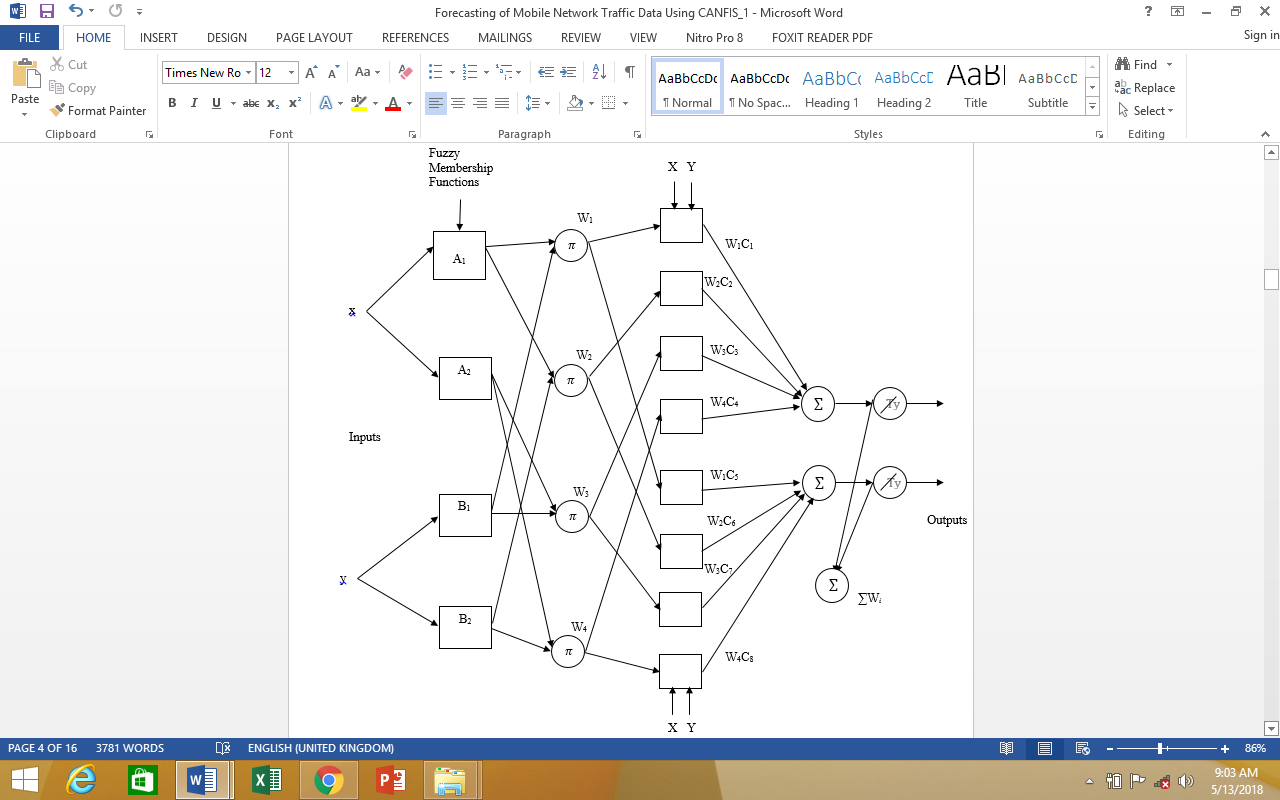

Figure 1: 2-Input 2-Output CANFIS Architecture

 Layer 1(Premise Parameters): Every node in this layer is a complex-valued membership function ) with a node function:



Each node in layer 1 is the membership grade of a fuzzy set  and specifies the degree to which the given input belongs to one of the fuzzy sets.

Layer 2 (Firing Strength): Every node in this layer is a product of all the incoming signals. This layer receives input in the form of all the output pairs from the first layer:



Layer 3 (Normalised Firing Strength)

Every node in this layer calculates rational firing strength using the formula:



Layer 4 (Consequence Parameters)

Every node in this layer is multiplication of Normalized Firing Strength from the third layer and output of neural network given by:



Layer 5 (Overall Output): This layer computes the output of the CANFIS network [34] as follows:

The number of modular networks matches the number of network outputs and the number of processing elements in each network corresponding to the number of membership function. CANFIS has a combiner axon that applies the MF outputs to the modular network outputs. The combined outputs are channelled through a final output layer and the error is backpropagated to both the MFs and the modular networks [34].

Each output of the CANFIS has its own consequent parameters in the defuzzification layer. In the premise part (fuzzification layer) on the order hand, the MF are shared by all outputs which considerably reduce the number of model parameters while providing multiple output [25].

The two most commonly used membership functions are the Gaussian and the general bell [35] [22]. It also contains a normalization axon to expand the output into the 0 to 1 as stated in reference [25]

Bell function is given by reference [34] as:

where x = input to the node and a1, b1 and c1 = adaptable variables known as premise parameters

Gaussian function is given by reference [34] as:

The Gaussian membership function is determined by c and σ, where c represents the center of the MF and σ determines the width of the MF [36].

3.3  Forecasting Accuracy Measure

To select the best model for forecasting, the model with the minimum values of MSE, NRMSE, R and percent error were used as the criteria.

Mean Squared Error (MSE) is calculated as:

Normalised Root Mean Squared Error (NRMSE) is given as:

The percent error (%Error) is computed as:

where

P is the number of output processing elements

N is the number of exemplars in the data set

 is the network output for exemplar i at processing element j

 is the desired output for exemplar i at processing element j

is the denormalised network output for exemplar i at processing element j

 is the denormalised desired output for exemplar i at processing element j

3.4  Data Analysis of 2G and 3G Weekly Voice Traffic

3.4.1 Data Collection and Specification

The data used is a primary source measured from 3G and 2G telecommunication network operator in Ghana. The data was collected from March 2015 to February 2017 and consist of 178 sample of weekly 3G network traffic and 99 samples of weekly 2G network traffic. The study employed NeuroSolutions software for the analysis of data.

Table 1: Summary Statistics of 2G Voice Weekly Traffic

Data

Mean

Median

Max.

Min.

Std. Dev.

Skewness

Value

489394.4

464115

698836

279396

125677.4

0.103012

Table 1 and Table 2 represent the summary statistics of the 3G and 2G network voice traffic data which indicates a high variation among the weekly observations and also the data exhibits asymmetric pattern.

Table 2: Summary Statistics of 3G Voice Weekly Traffic

Data

Mean

Median

Max.

Min.

Std. Dev.

Skewness

Value

1362434

1619248

2709330

437722.6

553089.7

-0.105359

The data was divided into three: training (70%), validation (15%) and testing (15%) as shown in                   Table 3.

Table 3: Training, Testing and Validation Data Sample for 2G and 3G Voice Traffic

Sample

2G Weekly Voice Traffic

3G Weekly Voice Traffic

Training Data (70%)

71

126

Testing Data (15%)

14

26

Validation Data (15%)

14

26

3.4.2 CANFIS Model Configuration

The parameters used for the CANFIS model architecture are illustrated in Table 4, Table 5 and Table 6. To determine the performance goal of CANFIS model for 2G and 3G voice traffic the various parameters were selected.

Table 4: Input Layer Parameter Selection for CANFIS Modelling of 2G and 3G Weekly Voice Traffic

Parameter

99 Samples of 2G

178 Samples of 3G

Input Pes

1

1

1

1

Output Pes

1

1

1

1

Exemplars

99

99

178

178

Hidden layers

0

0

0

0

Membership function (MF)

Bell

Gaussian

Bell

Gaussian

MFs per Input

3

3

3

3

Fuzzy Model

TSK

TSK

TSK

TSK

Table 5: Output Layer Parameter Selection for CANFIS Modelling of 2G Voice Traffic

Parameter

99 Samples of 2G Weekly

Transfer Function

Axon

Axon

TanhAxon

Learning Rule

Momentum

Momentum

LM

Step size

1

1

------

Momentum

0.7

0.7

------

Maximum Epochs

600

600

600

Termination

MSE (Increase)

MSE (Increase)

MSE (Increase)

Threshold

0.01

0.01

------

Weight Update

Batch

Batch

Batch

Table 6: Output Layer Parameter Selection for CANFIS Modelling of 3G Weekly Voice Traffic

Parameter

178 Samples of 3G Weekly

Transfer Function

Axon

Axon

TanhAxon

Learning Rule

Momentum

Momentum

LM

Step size

1

1

------

Momentum

0.7

0.7

------

Maximum Epochs

600

600

600

Termination (MSE)

Increase

Increase

Increase

Threshold

0.01

0.01

------

Weight Update

Batch

Batch

Batch

Table 7: Training Performance Parameters and Accuracy Tests

2G Weekly Voice Traffic

3G Weekly Voice Traffic

Neuro-fuzzy model

TSK

TSK

Membership function

Bell

Gaussian

Bell

Gaussian

Transfer function

Axon

Axon

TanhAxon

Axon

Axon

TanhAxon

Learning rule

Momentum

Momentum

LM

Momentum

Momentum

LM

MFs per Input

3

3

3

3

3

3

Number of Epochs

600

600

600

600

600

600

MSE

9.557e-5

2.259e-5

7.62e-5

3.42e-5

1.21e-6

3.14e-5

NRMSE

5.431e-3

2.64e-3

4.85e-3

3.25e-3

6.12e-4

3.11e-3

R

0.99983

0.99996

0.99982

0.99996

0.99999

0.99997

Percent Error (%)

0.4407

0.2143

0.2279

0.2364

0.0449

0.2152

Table 7 exhibits that for the 2G weekly voice traffic, Gaussian membership function, Axon transfer function, momentum learning rule, MSE = 2.259e-5, NRMSE = 2.64e-3 and 21.43% error. In the case of 3G weekly voice traffic, Gaussian membership function, Axon transfer function with MSE value of 1.21e-6, NRMSE = 6.12e-4 and percent error of 4.49.

3.4.3 Model Selection

The best model was selected using forecasting accuracy measure with minimum values of MSE, NMSE and percent error. From Table 8, the best model to predict 2G weekly voice traffic with minimum values of MSE and NMSE of 2.63e-5 and 2.85e-3 respectively is CANFIS-1.

Table 8: CANFIS Model Selection Criteria with 99 Samples of 2G Weekly Voice Traffic with 5 MFs per Input

Architecture

Type of MF

Transfer function

Training Algorithm

MSE

NMSE

CANFIS-1

Gaussian

Axon

Momentum

8.62e-6

1.63e-3

CANFIS-2

Bell

Axon

Momentum

2.63e-5

2.85e-3

CANFIS-3

Bell

TanhAxon

LM

1.87e-4

7.60e-3

CANFIS-4

Gaussian

TanhAxon

LM

4.35e-5

3.66e-2

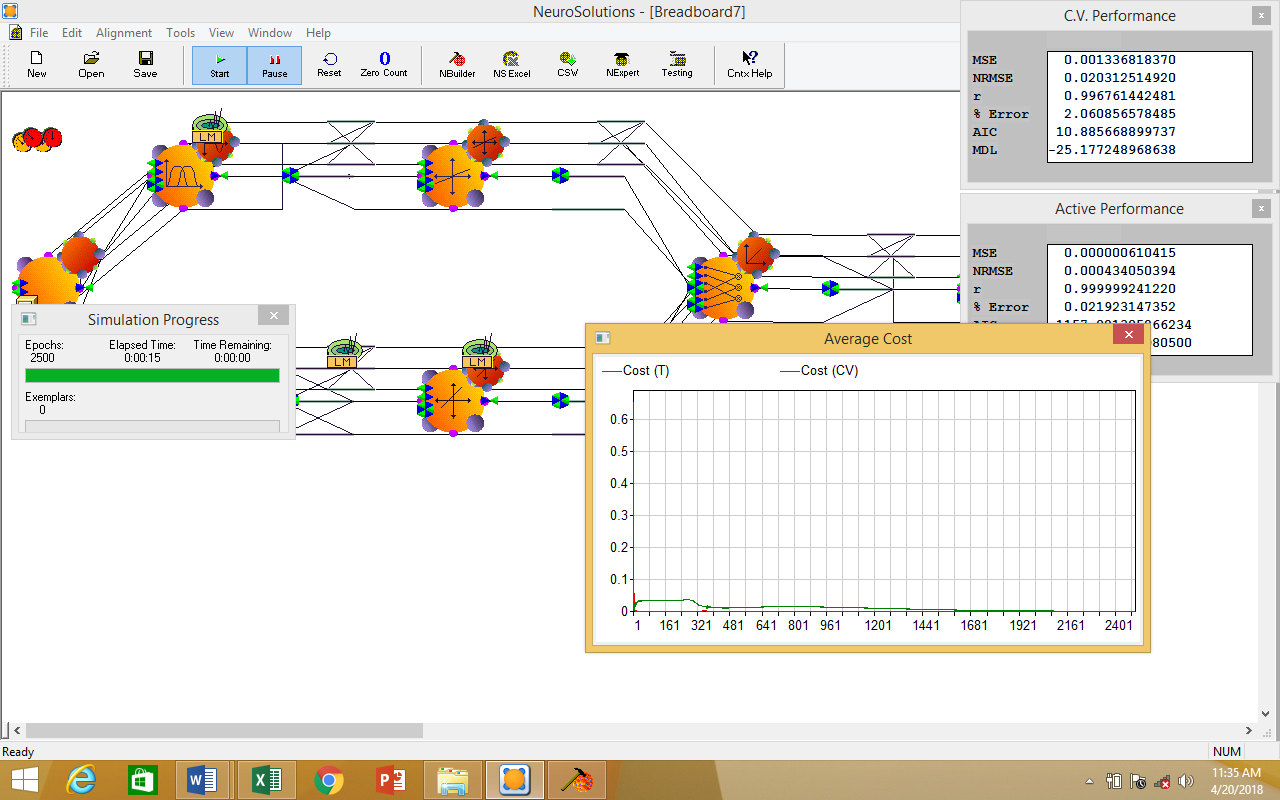

 Figure 2: CANFIS Testing Window with Convergence Rate for 2G Weekly Traffic

Figure 2 indicates that the active cost curve approaches zero, which shows that the classification of the 2G weekly voice traffic data set performed suitably when CANFIS model was implemented.

The forecasting results of CANFIS-1 model and the actual 2G weekly voice traffic is exhibited in                 Figure 3.

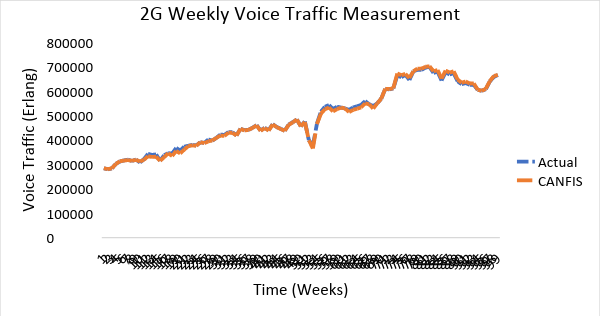

Figure 3: Actual and Predicted Plot of 2G Weekly Voice Traffic

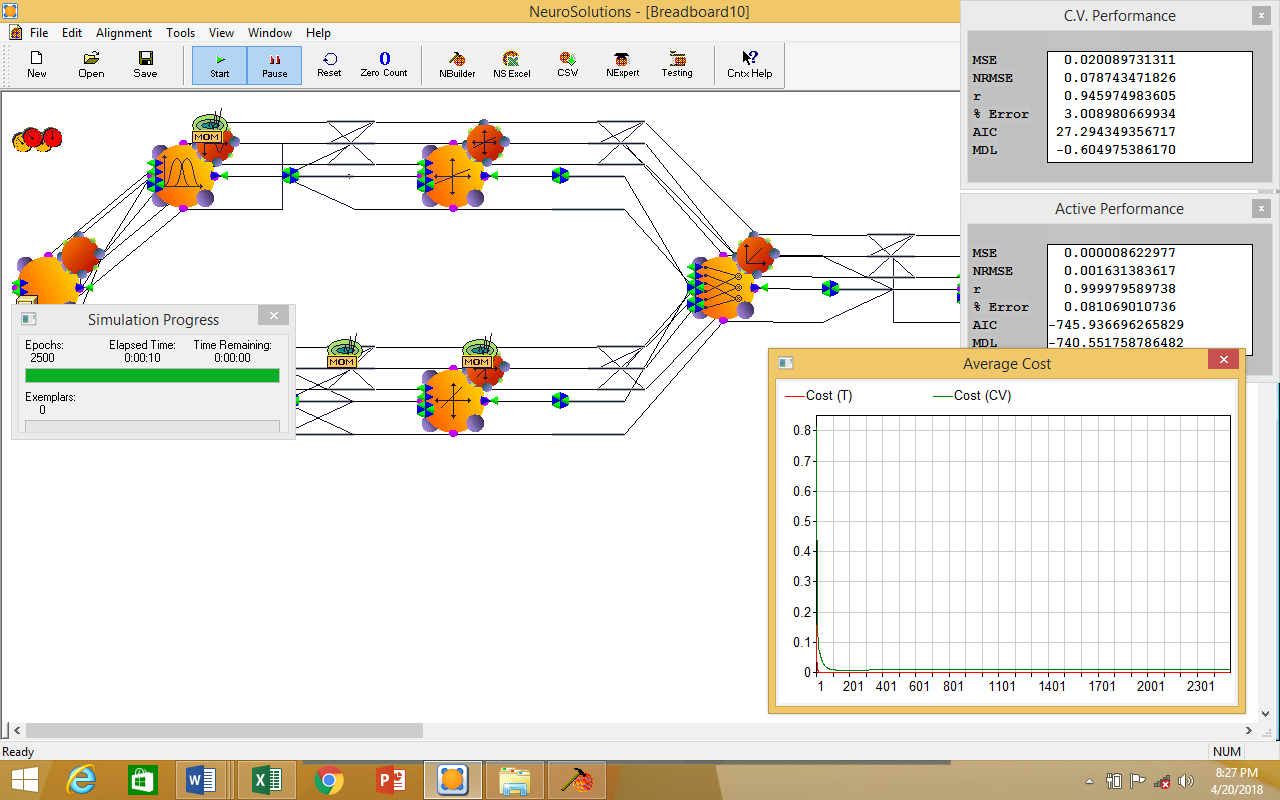

Figure 4: CANFIS Testing Window with Convergence Rate for 3G Weekly Voice Traffic

Figure 4 indicates that the active cost curve approaches zero, which shows that the classification of the 3G weekly voice traffic data set performed suitably when CANFIS model was implemented.

From Table 9, the best model to predict 3G weekly voice traffic with minimum values of MSE and NMSE of 1.80e-6 and 7.46e-4 respectively is CANFIS-7.

Table 9: CANFIS Model Selection Criteria with 178 Samples of 3G Weekly Voice Traffic with 7 MFs per Input

Architecture

Types of MF

Transfer function

Training Algorithm

MSE

NMSE

CANFIS-5

Gaussian

Axon

Mom

4.31e-6

1.15e-3

CANFIS-6

Bell

Axon

Mom

8.57e-6

1.63e-3

CANFIS-7

Bell

TanhAxon

LM

1.80e-6

7.46e-4

CANFIS-8

Gaussian

TanhAxon

LM

3.23e-5

3.16e-3

Figure 5: Actual and Predicted Plot of 3G Weekly Voice Traffic

The forecasting results of CANFIS-7 model and the actual 3G weekly voice traffic is exhibited in                          Figure 5.

  1. CONCLUSION

The analysis of 2G and 3G voice traffic by researchers have established that their characteristics follows the Poisson distribution and that earlier theories on call arrivals hold. However, few research work have been conducted in the literature, with respect to predicting 2G and 3G voice traffic using artificial intelligent networks.

The research objective have been achieved by preprocessing 178 samples of 3G weekly voice traffic and 99 samples of 2G weekly voice traffic and modelling the data with CANFIS. The method of network creation, training, parameter selection and model selection have been followed.

The results indicate that CANFIS model with Bell membership function, 7 membership function per input, TanhAxon transfer function and Levenberg Marquardt learning rule can give accurate traffic prediction for 3G voice traffic. With 2G voice traffic, CANFIS model with Gaussian membership function, 5 membership function per input, Axon transfer function and momentum learning rule was the best model. The results indicate that CANFIS model can be used to predict both 2G and 3G weekly voice traffic with appreciable improvement.

REFERENCE

  1. Y. Yu, M., Song, Y. Fu, and J. Song, “Traffic prediction in 3G mobile networks based on multifractal exploration”, Tsinghua Science and Technology, vol. 18, no. 4, pp. 398-405, 2013.
  2. F. Ni, Y. Zang, and Z. Feng, “A study on cellular wireless traffic modelling and prediction using Elman neural networks,” 4th International Conference on Computer Science and Network Technology (ICCSNT 2015), Harbian, China, pp. 490-494, 2015.
  3. D. Maio, W. Sun, X. Qin, and W. Wang, “MSFS: Multiple spatio-temporal scales traffic forecasting in mobile cellular network”, 14th IEEE International Conference on Dependable, Autonomic and Secure Computing, 14th International Conference on Pervasive Intelligence and Computing, 2nd International Conference on Big Data Intelligence and Computing and Cyber Science and Technology Congress, Auckland, New Zealand, pp. 787-794, 8-12 Aug, 2016.
  4. I. Goetz, “Mobile network transmission quality”, BT Technology Journal, vol. 14, no 3, pp. 81-91, July 1996.
  5. A. G. Valkó, A. Rácz, and G. Fodor, “Voice QoS in Third-Generation Mobile Systems,” IEEE Journal on Selected Areas in Communications, vol. 17, no. 1, pp. 109-123, Jan 1999.
  6. S. Büyükçorak, G. K. Kurt, and G. Toprakkiran, “An empirical study on call arrivals in cellular networks: incoming and outgoing calls,” 7th International Conference on Signal Processing and Communication Systems, Carrara, Australia, 16-18 Dec, 2013.
  7. A. Falsafi, K. Bruemmer, and J.-H., Deschemnnes, “Characterizing backhaul traffic in 3G networks using real-world speech,” IEEE Conference on Communications and Networking, WCNC 2004, Atlanta, USA. pp. 1743-1747, 21-25 March, 2004.
  8. S. Bregni, R. Cioffi, and M. Decina, “An empirical study on time-series correlation of GSM telephone traffic,” IEEE Transaction on Wireless Communication, vol. 7, no. 9, pp. 3428–3435, 2008.
  9. Y. Gao, L. Zheng, D. Zhao, Y. Wu and G. Wang, “Short term prediction models of mobile network traffic based on time series analysis,” 2nd International Conference on Machine Learning and Intelligent Communications, Weihai, China, 5-6 August, 2017.
  10. P. Mastorocosts, C. Hilas, D. Varsamis and S. Dova, “A recurrent neural network-based forecasting system for telecommunications call volume,” Applied Mathematics & Information Sciences, vol. 7, no. 5, pp. 1643-1650, May, 2013.
  11. G. Madden and T. Joachim, “Forecasting telecommunications data with linear models,” Telecommunications Policy, vol. 31, pp. 31-44, 2007.
  12. N. S. Nalawade and M. M. Pawar, “Forecasting telecommunications data with Autoregressive Integrated Moving Average models,” 2nd International Conference on Recent Advances in Engineering & Computational Sciences (RAECS), Chandigarh, India, 21-22 December, 2015.
  13. L. Wang, Z. Li and C. Song, “Network traffic prediction based on seasonal ARIMA model,” 5th World Congress on Intelligent Control and Automation (IEEE Cat. No. 04EX788), Hangzhou, China, pp. 1425-1428, 15-19 June, 2004.
  14. G. Yang, Y. Wang, H. Yu and Y. Ren, “Short-term traffic state prediction based on the spatiotemporal features of critical road sections,” Sensors, vol. 18, no. 7, pp. 1-26, 14 July, 2018.
  15. J. Li, Z. Jia, X. Qin, L. Sheng, and L. Chen, “Telephone traffic prediction based on modified forecasting model,” Research Journal of Applied Sciences, Engineering and Technology, vol. 6, no. 17, pp. 3156-3160, 2013.
  16. M. O. Odim, J. A. Gbadeyan, and J. S. Sadiku, “A neural network model for improved internet service resource provisioning,” British Journal of Mathematics and Computer Science, vol. 4, no. 17, pp. 2418-2434, 2014.
  17. F. Huifang, and S. Yantai, “Study on network traffic prediction techniques,” Intentional Conference on Wireless Communications, Networking and Mobile Computing, (WiCom 2005), Shanghai, China, pp. 1041-1044, September 2005.
  18. P. Tahmasebi, and A. Hezarkhani, “Application of Adaptive Neuro-Fuzzy Inference System for grade estimation: case study of sarcheshmeh porphyry copper deposit,” Kerman, Iran”, Australian Journal of Basic and Applied Sciences, vol. 4, no. 3, pp. 408-420, 2010.
  19. M. A. Raheem and O. U. Okereke, “A neural network approach to GSM traffic congestion prediction,” American Journal of Engineering Research, vol. 3, no. 11, pp. 131-138, 2014.
  20. H. Navarro, and L. Bennun, “Descriptive examples of the limitations of artificial neural networks applied to the analysis of independent stochastic data,” International Journal of Computer Engineering and Technology, vol. 5, no. 10, pp. 40-42, 2014.
  21. M. Tajdari, and S. Z. Chavoshi, “Prediction and analysis of radial overcut in holes drilled by electrochemical machining process,” Central European Journal of Engineering, vol. 3, no. 3. pp. 466-474, 2013.
  22. L. Parthiban, and R. Subramanian, “Intelligent heart disease prediction system using CANFIS and Genetic Algorithm,” International Journal of Biological and Life Science, vol. 3, no. 3, pp. 157-160, 2007.
  23. P. Tahmasebi, and A. Hezarkhani, “A hybrid neural networks-fuzzy logic-genetic algorithm for grade estimation,” Journal of Computers and Geosciences, vol. 42. pp. 18-27, 2012.
  24. K. Aziz, A. Rahman, A. Y. Shamseldin, and M. Shaoib, “Co-active Neuro-Fuzzy Inference System for regional flood estimation in Australia,” Journal of Hydrology and Environment Research, vol. 1, no. 1, pp. 11-20, 2013.
  25. O. Khayat, H. C. Nejad, F. N. Rahatabad, and M. M. Abadi, “Differentiating Adaptive Neuro-Fuzzy Inference System for accurate function derivative approximation,” Neurocomputing, vol. 103, pp. 232-238, 2013.
  26. N. P. Charalampos, D. E. Charilas, A. D. Panagopoulos, P. Chatzimisios, and Constantinou, P. “ANFIS-based quality prediction models for telephony in public 2G/3G mobile networks,” IEEE Global Conference on Communication (GLOBECOM), Anaheim, USA, 3-7 Dec, 2012.
  27. Y. Yur, M. F. Akay, and F. Abut, “Short term voice traffic forecast in 3G/UMTS networks using machine learning and statistical methods,” Proceedings of Academics World 41st International Conference, Barcelona, Spain, pp. 19-22, 18th August,  2016.
  28. G. Pandey, K. M. Siddiqui, and A. K. Choudhary, “Telecom voice traffic prediction for GSM using feed forward neural network,” International Journal of Engineering Science and Technology, vol. 5, no. 3, pp. 505-511, March 2013.
  29. A. K, Verma, T. N. Singh, and M. Monjezi, “Intelligent prediction of heating value of coal,” Iranian Journal of Earth Sciences, vol. 3, no. 2, pp. 32-38, January 2010.
  30. S. Hemachandra, and R. V. S. Satyanarayana, “Co-active Neuro-Fuzzy Inference System for prediction of electric load,” International Journal of Electrical and Electronics, vol. 3, no. 2, pp. 217-222, 2013.
  31. S. S. Tfwala, W. Yu-Min, and L. Yu-Chieh, “Prediction of missing flow records using Multilayer Perceptron and Coactive Neurofuzzy Inference System,” The Scientific World Journal, vol. 2013, pp. 1-7, 2013.
  32. S. K. Bhuvaneswari, P. Geetha, and K. J. Devi, “Samantic classification and region growing of MRI using CANFIS model for tumor identification,” Australian Journal of Basic and Applied Sciences, vol. 8, no. 3, pp.43-52, 2014.
  33. M. Heydari, and P. H. Talaee, “Prediction of flow through rockfill dams using a neuro-fuzzy computing technique,” The Journal of Mathematics and Computer Science, vol. 2, no. 3, pp. 515-528, 2011.
  34. S. Firoozi, M. J. Sheikhdavoodi, and M. Sami, “Evaluating the ability of different artificial intelligence-based modelling techniques in prediction of yield using energy inputs data of farms,” Journal of Life Science and Biomedicine, vol. 4, no. 4, pp. 305-311, 2014.
  35. T. O. S. Hanafy, “A new algorithm to model highly nonlinear system based Coactive Neuro-Fuzzy Inference System,” International Journal of Computer Applications, vol. 94, no. 17, pp. 9-20, May 2014.



author

For Authors

Author Membership provide access to scientific innovation, next generation tools, access to conferences/seminars
/symposiums/webinars, networking opportunities, and privileged benefits.
Authors may submit research manuscript or paper without being an existing member of LJP. Once a non-member author submits a research paper he/she becomes a part of "Provisional Author Membership".

Know more

institutes

For Institutions

Society flourish when two institutions come together." Organizations, research institutes, and universities can join LJP Subscription membership or privileged "Fellow Membership" membership facilitating researchers to publish their work with us, become peer reviewers and join us on Advisory Board.

Know more

subsribe

For Subscribers

Subscribe to distinguished STM (scientific, technical, and medical) publisher. Subscription membership is available for individuals universities and institutions (print & online). Subscribers can access journals from our libraries, published in different formats like Printed Hardcopy, Interactive PDFs, EPUBs, eBooks, indexable documents and the author managed dynamic live web page articles, LaTeX, PDFs etc.

Know more
